Tirupati Enterprises is a trusted manufacturer, exporter, and supplier of Lapped Joint Flanges and Stainless Steel Flanges (Grades 304, 304L, 316, 316L), available in various materials, finishes, and sizes in both metric and inch standards. Our Lapped Joint Flanges are manufactured in different materials, including:
These flanges conform to Slip-On specifications and are widely supplied across India and Asia.

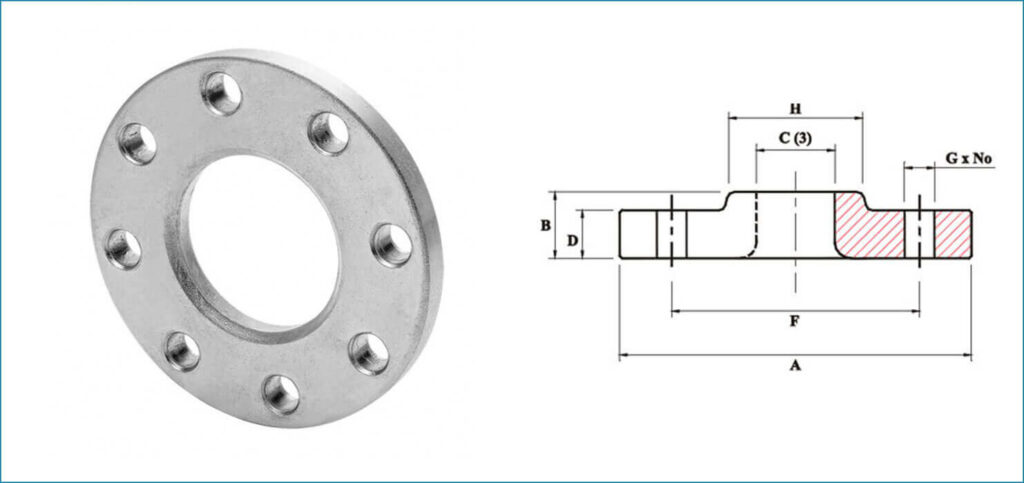

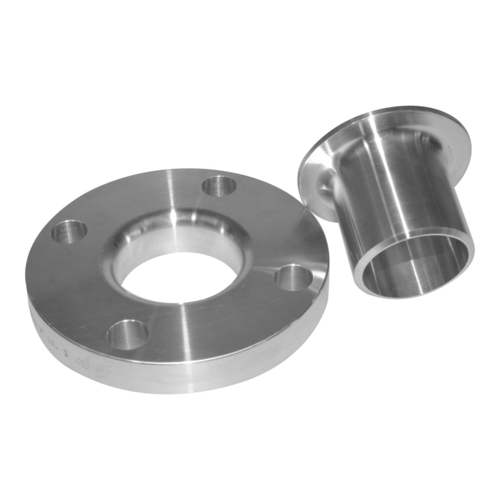

Lap Joint Flanges are similar to other industrial flanges but do not have a raised face. They are designed to be used with a Lap Joint Stub End, which allows for easy alignment and rotation. While the initial cost of a Lap Joint Flange along with a stub end is higher compared to a welding neck flange, they are highly preferred in piping systems requiring frequent dismantling for inspection and cleaning.
The pressure holding capacity of Lap Joint Flanges is lower compared to other flange types, and the fatigue life of the assembly is approximately one-tenth of a welding neck flange. These flanges slip over the pipe and are not welded or permanently attached, allowing for easy adjustment. The bolting pressure is transferred to the gasket through the flange pressing against the stub end.
LAP JOINT FLANGES, LJ FORGED FLANGES PRODUCTION RANGE
Size: 1/2″ (15 NB) to 48″ (1200NB)
Standards: ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
Pressure Ratings: Class 150, Class 300, Class 400, Class 600, Class 900, Class1500, Class 2500 | PN6, PN10, PN16, PN25, PN40, PN64 etc.
Carbon Steel Lap Joint Flanges: ASTM A105/A105N, A350 LF1, LF2 CL1/CL2, LF3 CL1/CL2, A694 F42, F46, F48, F50, F52, F56, F60, F65, F70, A516.60, 65, 70 (Spectacle Lapped Joint Flange, Spacer Ring/Spade Flange), Steel RST37.2, C22.8
Stainless Steel Lap Joint Flanges: ASTM A182 F202, F304/304L/304H, F316/316L, F316H, F316TI, F310, F321, F904L
Alloy Steel Lap Joint Flanges: ASTM A182 F1, F5, F9, F11, F22, F91
Special Alloy Lap Joint Flanges: Duplex, Super Duplex, Nickel Alloys
Flange Face Type: Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
Coating/Surface Treatment: Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized
Value Added Services: CNC Machining, Customised Flanges
Diameter : 1/2″ to 24″
Tirupati Enterprises specializes in the manufacturing and supply of Stainless Steel Flanges, Pipe Fittings, Forged Fittings, Butt Weld Fittings, and other carbon and alloy steel products. Since 1991, we have been delivering high-quality industrial flanges and fittings, catering to global standards such as ASME, ASTM, and API.
We manufacture and export seamless and welded stainless steel flanges to over 60 countries, serving industries across:
Nigeria, Australia, Malaysia, Egypt, South Africa, Kenya, Germany, Turkey, France, the UK, Italy, the Netherlands, Iran, Iraq, Saudi Arabia, UAE, Israel, Jordan, Oman, Kuwait, Qatar, Bahrain, China, Indonesia, South Korea, Pakistan, Singapore, Brazil, Argentina, and the USA.
Tirupati Enterprises is an ISO 9001:2008, ISO 14001, OHSAS 18001 certified company since 2006 and a PED-approved manufacturer since 2008. We are among India's top manufacturers and suppliers of industrial flanges, with approvals from leading global companies, including:
We manufacture and export pipe flanges ranging from ½” to 200” with pressure ratings of 150 lbs to 3000 lbs, covering a wide spectrum of carbon steel, stainless steel, and alloy steel flanges. Our expertise includes flanges compliant with ANSI, API, MSS, AWWA, DIN, JIS, BS, and GB standards.
Additionally, we specialize in custom ring flanges and precision-engineered forgings as per client specifications. Our production facility ensures stringent quality control, delivering products tailored to petrochemical, chemical, and waterworks industries.
📏 Sizes: ½” to 198”
Before purchasing ANSI, API, AWWA pipe flanges, compare our prices and experience the superior quality that makes Tirupati Enterprises a global leader in stainless steel and alloy steel manufacturing.
